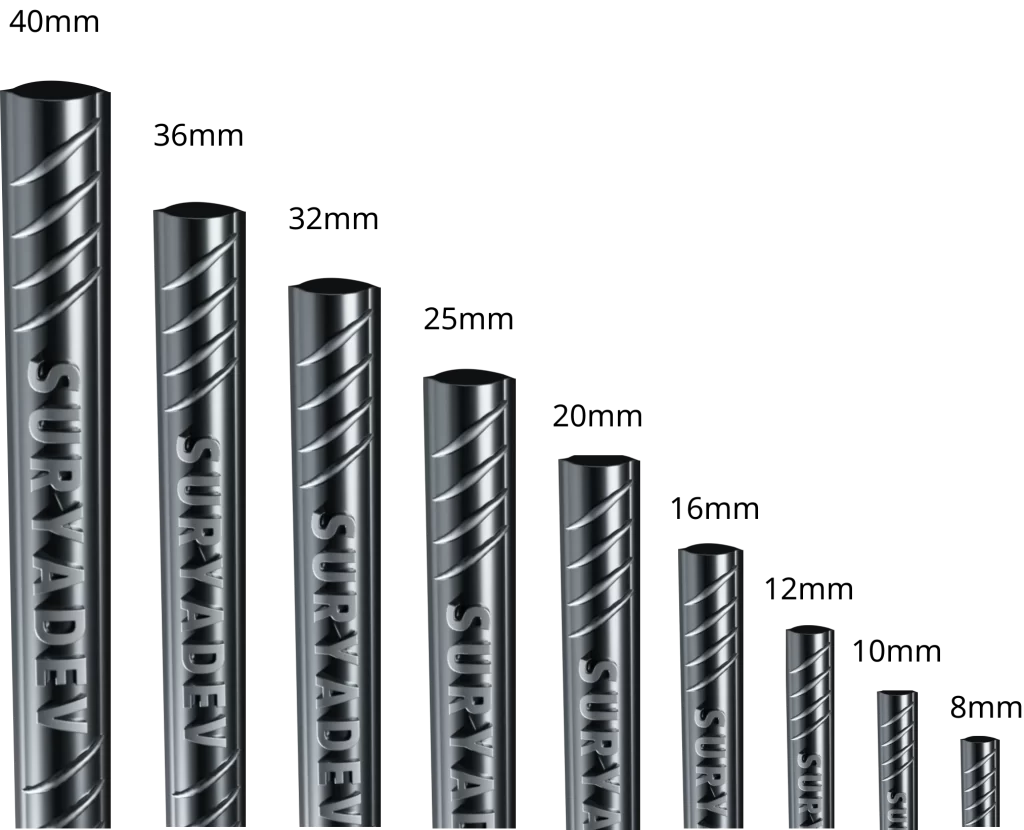

TMT Bars

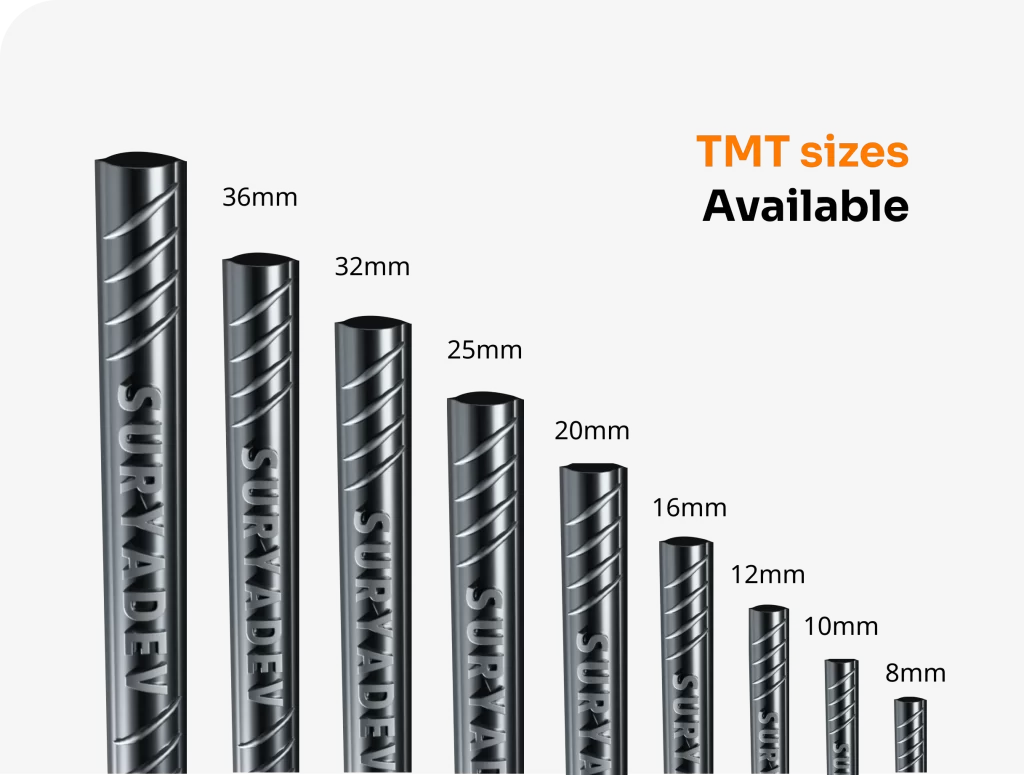

Suryadev TMT bars are available in a variety of grades and sizes, ranging from 8mm to 32mm. The TMT bars can also be customised to specific construction requirements.
Suryadev FE 550
Suryadev Fe550 TMT bars are ideal for small and medium-sized residential projects. They have higher tensile strength compared to ordinary grades of TMT bars. This enables significant cost-savings as a fewer number of TMT bars are required to reinforce a structure. Furthermore, the high tensile strength of Fe550 TMT bars improves bonding between concrete and steel thereby increasing longevity of the structure. Suryadev Fe550 TMT bars also have excellent weldability and superior bend and re-bend properties making them the preferred choice of engineers and masons.
Chemical Properties |
|
| Properties (%) | Suryadev FE 550 |
|---|---|
| Carbon (max) | 0.25 |
| Sulphur (max) | 0.05 |
| Phosphorous (max) | 0.055 |
| Sulphur+Phosphorous (max) | 0.10 |
Mechanical Properties |
|
| Properties (%) | Suryadev FE 550 |
|---|---|
| Yield strength (min) | 570 |
| Ultimate Tensile Strength (min) | 650 |
| Elongation (min) | 14.5 |
| Total Elongation (min) | 5 |
Suryadev FE 500D
Suryadev Fe500D TMT bars are highly ductile compared to other grades of TMT bars. The superior ductility is attained by thoroughly refining the chemical composition during manufacturing and ensuring low levels of carbon, sulphur, and phosphorous. This increases their elongation percentage and makes them ideal for construction projects in high seismic zones. The high ductility of Suryadev Fe500D TMT bars increases their ability to withstand tremendous shock and pressure caused during earthquakes.
Chemical Properties |
|
| Properties (%) | Suryadev FE 500D |
|---|---|
| Carbon (max) | 0.23 |
| Sulphur (max) | 0.04 |
| Phosphorous (max) | 0.04 |
| Sulphur+Phosphorous (max) | 0.075 |
Mechanical Properties |
|
| Properties (%) | Suryadev FE 500D |
|---|---|
| Yield strength (min) | 530 |
| Ultimate Tensile Strength (min) | 600 |
| Elongation (min) | 18 |
| Total Elongation (min) | 6 |
Suryadev FE 550D
Crafted for superior strength, incredible flexibility, and exceptional longevity, Fe550D is Suryadev’s flagship TMT bar. Suryadev Fe550D TMT bars combine high strength with outstanding ductility. This is achieved by increasing yield and tensile strength and maintaining low carbon, phosphorous and sulphur content. They are meticulously manufactured with precise chemical composition and physical properties that make them highly resistant to fire, corrosion, and earthquakes. Suryadev Fe550D TMT bars are well-suited for all kinds of construction, including high-rise residential and critical infrastructure projects.
Chemical Properties |
|
| Properties (%) | Suryadev FE 550D |
|---|---|
| Carbon (max) | 0.23 |
| Sulphur (max) | 0.04 |
| Phosphorous (max) | 0.04 |
| Sulphur+Phosphorous (max) | 0.075 |
Mechanical Properties |
|
| Properties (%) | Suryadev FE 550D |
|---|---|
| Yield strength (min) | 575 |
| Ultimate Tensile Strength (min) | 650 |
| Elongation (min) | 16 |
| Total Elongation (min) | 5.5 |
HSCRS
Suryadev HSCRS (High Strength Corrosion Resistant) bars are designed for infrastructure projects in coastal regions with high acidity and salinity. They are also the preferred choice of engineers for marine or underwater structures and construction in waterlogged areas. With the addition of copper, Chrome, and Nickel, Suryadev HSCRS bars have unique chemical composition and offer greater resistance to corrosion than epoxy-coated and zinc-coated TMT bars. Suryadev HSCRS bars have phenomenal corrosion resistant properties while maintaining high strength, ductility and bendability.
Chemical Properties |
|
| Properties (%) | Suryadev HSCRS |
|---|---|
| Carbon (max) | 0.17 |
| Sulphur (max) | 0.04 |
| Phosphorous (max) | 0.060 |
| Sulphur+Phosphorous (max) | 0.100 |
Mechanical Properties |
|
| Properties (%) | Suryadev HSCRS |
|---|---|
| Yield strength (min) | 530 |
| Ultimate Tensile Strength (min) | 620 |
| Elongation (min) | 15 |
| Total Elongation (min) | 5 |
